aHR0cDovL2ZyZWVzaGlwLmNvLmty Item specifics
- Brand Name:
- Hengjin
- Type:
- Plate Exposure
- Condition:
- New
- Automatic Grade:
- Semi-Automatic
- Model Number:
- ST-500
- Machine style :
- screen plate exposure unit
- rubber size: :
- 500x 400mm
- Power :
- 160w
- funcation :
- make screen plate or metal plate
- is_customized:
- Yes
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 26.000kg (57.32lb.)
- Package Size:
- 62cm x 62cm x 25cm (24.41in x 24.41in x 9.84in)
silk screen plate exposure unit with vacuum,exposure unit price,expsoure unti for sale
Buyer Noted:
For all countries which machine cost is the same. Only different country have different carrier cost. When we get your order will confirm it with the carrier company. Please understanding.
screen plate exposure unit apply:

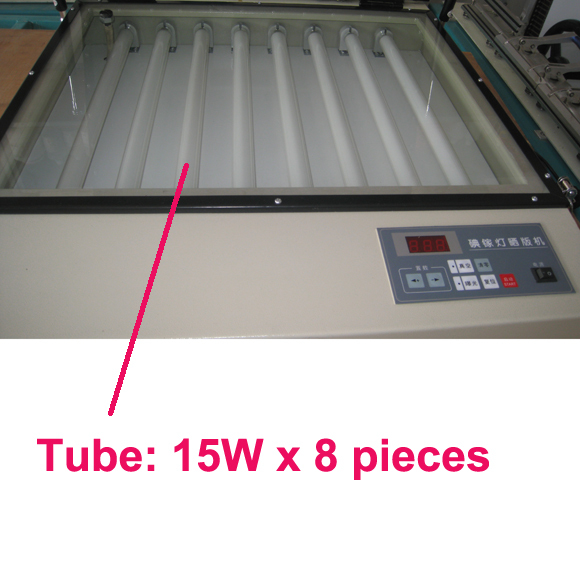

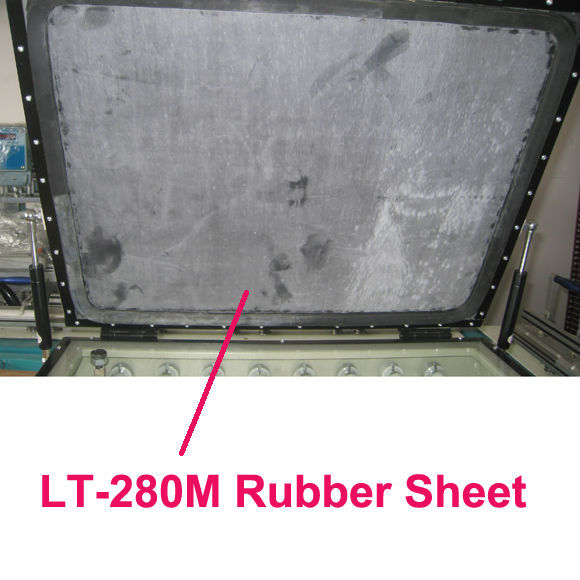

Screen frame vacuum exposure machine is the new type according to customers\' need.It has the excellent structure and controlled by mircocomputer,data display,install numbers by button,parameter store,intelligentialize design, operate easily.It has 8x 15W UV lamps,imported vacuum rubber.This machine could widely use for screen frame,scutcheon and steel plate.
Clearly number reveals setting will control the exposure time accurately.
screen plate exposure unit parameter:
1 Voltage: 110V 50HZ
2 Power: 160W
3 Vacuity: less -0.025
4 Rubber chamber size: 500x 400mm
5 Overall dimension: 600x 600x 180mm

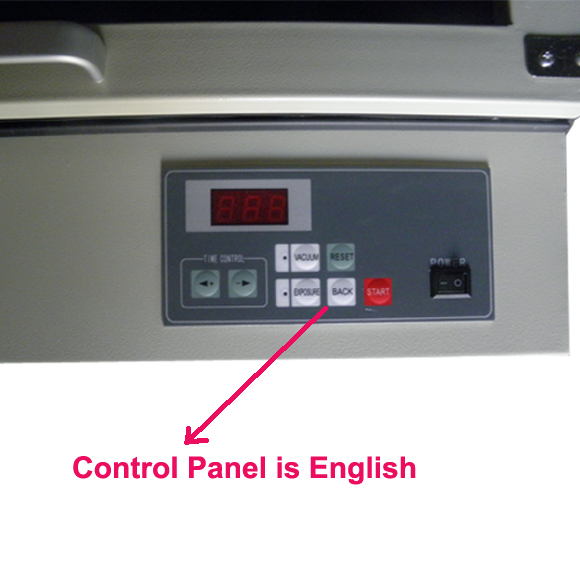

Function of all parts:
1) Power switch: Turn on/ off overall unit.
2) Display window: Three-position display, show the exposure parameters and program execution.
3) Reset key: It has reset function that will back to original state if press it.
4) Start key: Tickle this button to start exposure.
5) Vacuum key: Use with Install No. key, it can perset, query, revise delay time of vacuum.
6) Exposure key: Use with Install No. key, it can perset, query, revise exposure time.
7) Install No. key " +,-" Enter into digits whn perset or revise parameters.
8) Zero key: Zero clearing function.
9) Vacuum pilot lamp: At the initial state, pilot lamp is light; delay 2s later return to exposure key, execute vacuum delay prodedure and the pilot lamp be light.
10) Exposure pilot lam: At the initial state, pilot lamp is light; till press the vacuum key, exposure key is function and execute exposure prodedure, the pilot lamp be light.
