- Brand Name:
- Model Number:
- diapharagm areator
- air diffuse for aeration
- ABS,rubber diapharagm with EPDM
- Waste water air diffuse,oxygen diffuse,aeration
- Unit Type:
- Package Weight:
- 0.500kg (1.10lb.)
- Package Size:
- 30cm x 30cm x 3cm (11.81in x 11.81in x 1.18in)

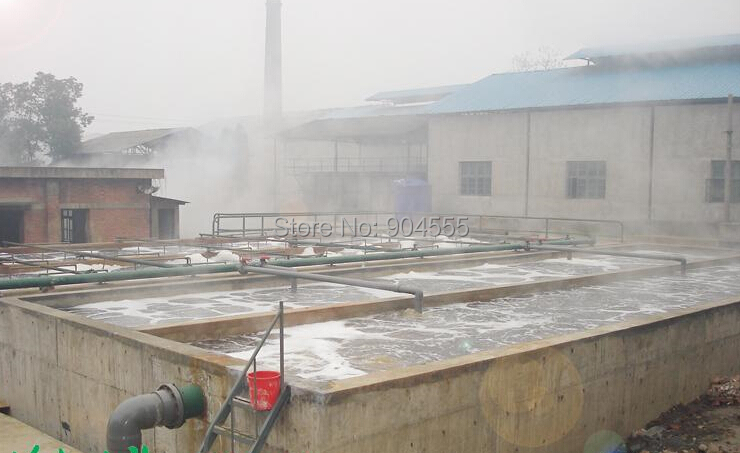

This diapharagm aerator are mostly used in wastewater treatment industry,aquiculture.....

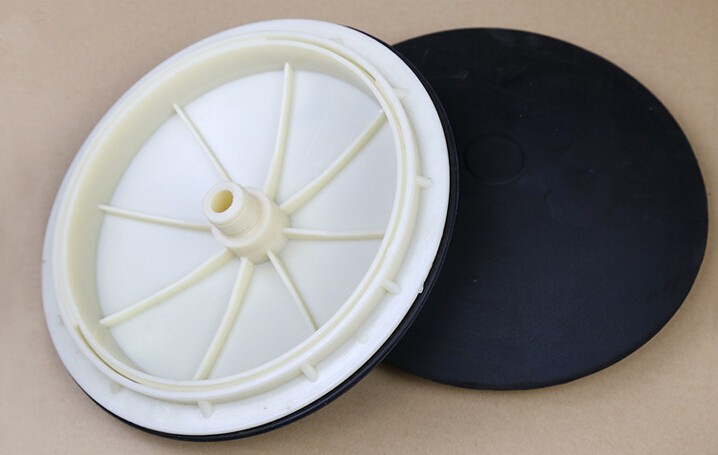

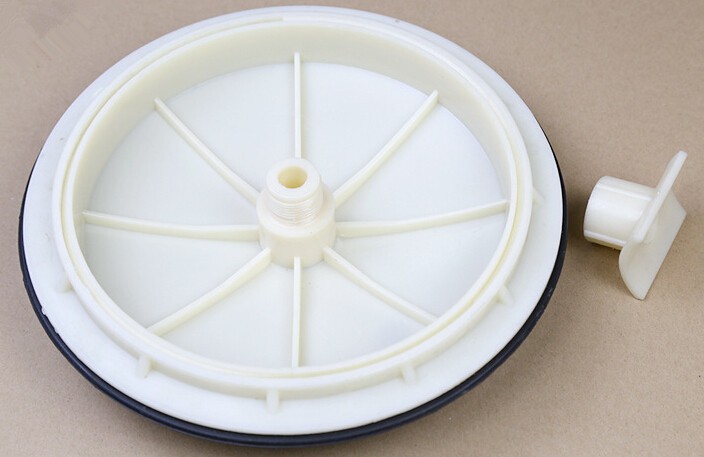

. Aerator Body Material: rubber diapharagm with EPDM
.Plastic connector Material: ABS
. Aerator Diameter: 215mm
. Diffuse area: 0.3-0.75 m2
. Diffuse air rate: 3 m3/pc/h
. Spiracle percentage: 36-42%
. Spiracle diameter:150-200um

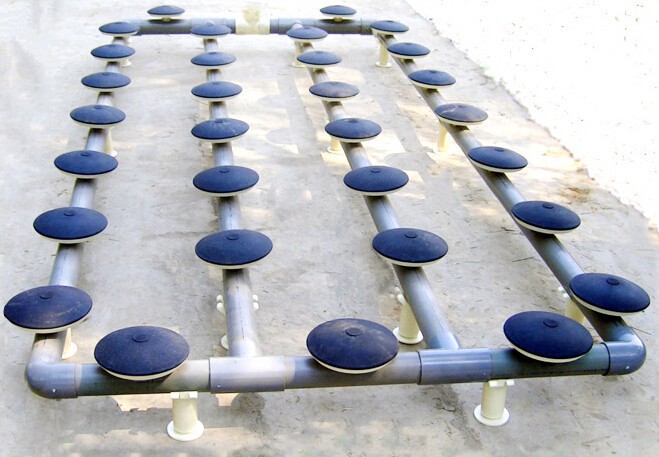

1. Assemble pipe :DN40 (DN50 for your choice)
2. 200mm higher from tank bottom.
3. Assemble under water depth 4 to 8 meter
. Freshwater, saltwater aquarium and hydroponic use;
. Aquacultures and other industrial air or oxygen aeration;
. Biochemical aeration.
After the pipe assemble well, Use glue to stick the aerator STAND arc side to your pipe well,it should assemble on DN 40 or DN50 pipe, and then use the drilling bit to drill hole to the pipe( put the drilling bit in the stand inlet and drill a hole through the pipe).Hole size 6-8mm is enough.
