- Unit Type: piece
- Package Weight: 9.000kg (19.84lb.)
- Package Size: 28cm x 19cm x 60cm (11.02in x 7.48in x 23.62in)
est Stand ALX-S for Digital Force Meter / Push-Pull Gauge 0-500N W/ Digital Ruler
ALX Screw test stand are fit to the domestic and imported NK, NLB, ALB series point type of mechanical force gauge and HF series of digital mechanical force gauge, which are subject to the pull load and plug destructive force test, also can be installed with steel gauge or digital gauge. Users can clearly observe the displacement when testing.
For vertical and horizontal dual-use, it can also be installed on the table (desktop) to achieve stable manual operation, simple and convenient.
Test Stand Only, the Force Gauge not included.
Effective stroke:150 mm

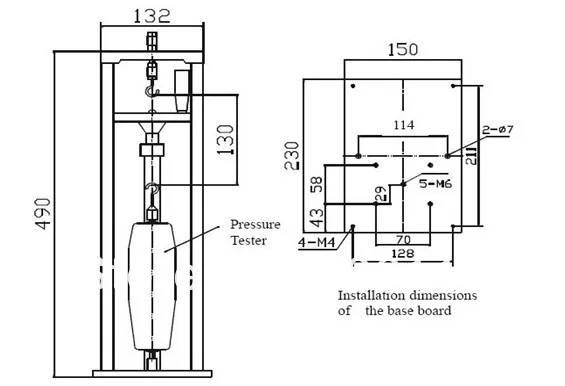

Length × width × height:230×150×490 mm
Effective area of the test area:105×100 mm
Net weight: 9kg
